Enable Malicious User Detection and Mitigation

Published April 5, 2023 | Last modified October 8, 2026

Objective

This guide provides instructions on how to enable malicious user detection and mitigation for your applications using the security options in the HTTP load balancer. To know more about security and load balancing concepts, see Security and Load Balancer.

Enabling this feature includes enabling detecting malicious activities and associated mitigation steps. The mitigation steps include issuing a JavaScript Challenge or Captcha Challenge or temporary blocking of the user. Using the instructions provided in this guide, you can enable malicious user detection and set mitigation steps as per your choice.

Prerequisites

The following prerequisites apply:

An F5 Distributed Cloud Account. If you do not have an account, see Getting Started with Console.
An HTTP Load Balancer advertising your application. For instructions on how to set up a primary DNS zone for a load balancer, see Create Primary Zone. For help setting up a load balancer, see HTTP Load Balancer. See the vK8s Deployment guide for deploying your applications on the F5 Distributed Cloud's Network Cloud or Edge Cloud.

Configuration

You can enable detection using one of the following methods:

Using a single load balancer Machine Learning (ML) configuration: In this method, the detection is enabled using the default configuration as part of the load balancer configuration. If you prefer to customize the malicious user detection settings, use method 2.
Using a multi-load balancer ML configuration: In this method, detection is enabled as part of the app type configuration, which also allows customization of the malicious user detection settings.

You can enable mitigation also in one of the following ways:

Using the load balancer security monitoring, malicious user IP addresses can be added to allow/deny lists.
Using the load balancer advanced security configuration, automatic mitigation of malicious users is configured.

Note: When malicious user mitigation is enabled and malicious user behavior is tracked, the system tags the users into threat levels High, Medium, and Low. The system automatically reduces the score when there is no malicious behavior detected for the user for a period of time. This is known as the Cooling Off Period. This period indicates how long it takes to reduce from High threat level to None. The system executes a score decay mechanism over a period of time for this to happen. The default Cooling Off Period is 20 minutes. This period can be changed only when the detection method is using multi-load balancer configuration. In case of single load balancer, the Cooling Off Period cannot be changed.

The instructions provided in this guide show all the options for enabling malicious user detection and mitigation.

Enable Malicious User Detection

Log into F5® Distributed Cloud Console (Console) and perform one of the following methods:

Using Single Load Balancer Configuration

For a single load balancer configuration, detection is enabled only for that load balancer.

Step 1: Start editing the load balancer configuration.

Select the Web App & API Protection workspace on the home page.

Note: Alternatively, you can search for load balancers in the search located on top of the home page.

Select Manage > Load Balancers > HTTP Load Balancers. A list of load balancers is presented.
Select ... > Manage Configuration for your load balancer and select Edit Configuration on the loaded form.

Step 2: Enable malicious user detection.

Go to the Common Security Controls section.
From the Malicious User Detection menu, select Enable.
Select Save HTTP Load Balancer.

Using Multi-Load Balancer Configuration

For a multi-load balancer configuration, the detection is based on the malicious user configuration derived from the app type and app settings objects. The mitigation is applied to all load balancers applied with the app type label.

Step 1: Create app type object.

Select the Shared Configuration workspace.
Navigate to Security > AI & ML > App Types. Select Add App Type.
Enter a name for the app type in the Metadata section.
Select Add Item for the AI/ML Feature Type field in the Features section.
Use the AI/ML Feature Type drop-down menu and select Malicious User Detection.
Select Add App Type.

Step 2: Apply app type label to the load balancer.

Switch to the Web App & API Protection workspace and change to the desired namespace.
Select Manage > Load Balancers > HTTP Load Balancers. A list of load balancers is presented.
Select ... > Manage Configuration for your load balancer and select Edit Configuration on the loaded form.
Select Add Label in the Labels field in the Metadata section.
Select ves.io/app_type as the key and name of the app type you created in previous step as the value.
Select Save HTTP Load Balancer.

Step 3: Start creating app settings object.

From the Web App & API Protection workspace, navigate to Manage > AI & ML > App Settings.
Select Add App Setting.
Enter a name.
In the Customize AppType For This Namespace section, select Add Item.
From the AppType drop-down menu, select the app type created in Step 1.

Step 4: Optionally, make changes to malicious user detection parameters.

This form shows the different problem categories used to identify a malicious user, sometimes including thresholds or sensitivity settings. By default, most methods of detecting malicious users are enabled. Based on a user's activities with respect to these problem categories, their threat level rises. Adjusting these parameters affects how much of an activity is required to raise their threat level. If the user stops activities in the problem categories for a period of time, their threat level is reduced. You can adjust that period of time by changing the Cooling Off Period at the bottom of the form.

In the Malicious User Detection section, select Configure to see the Malicious User Detection form. This form is pre-populated with the default settings. Modify these settings as per your needs. Then, click Apply.

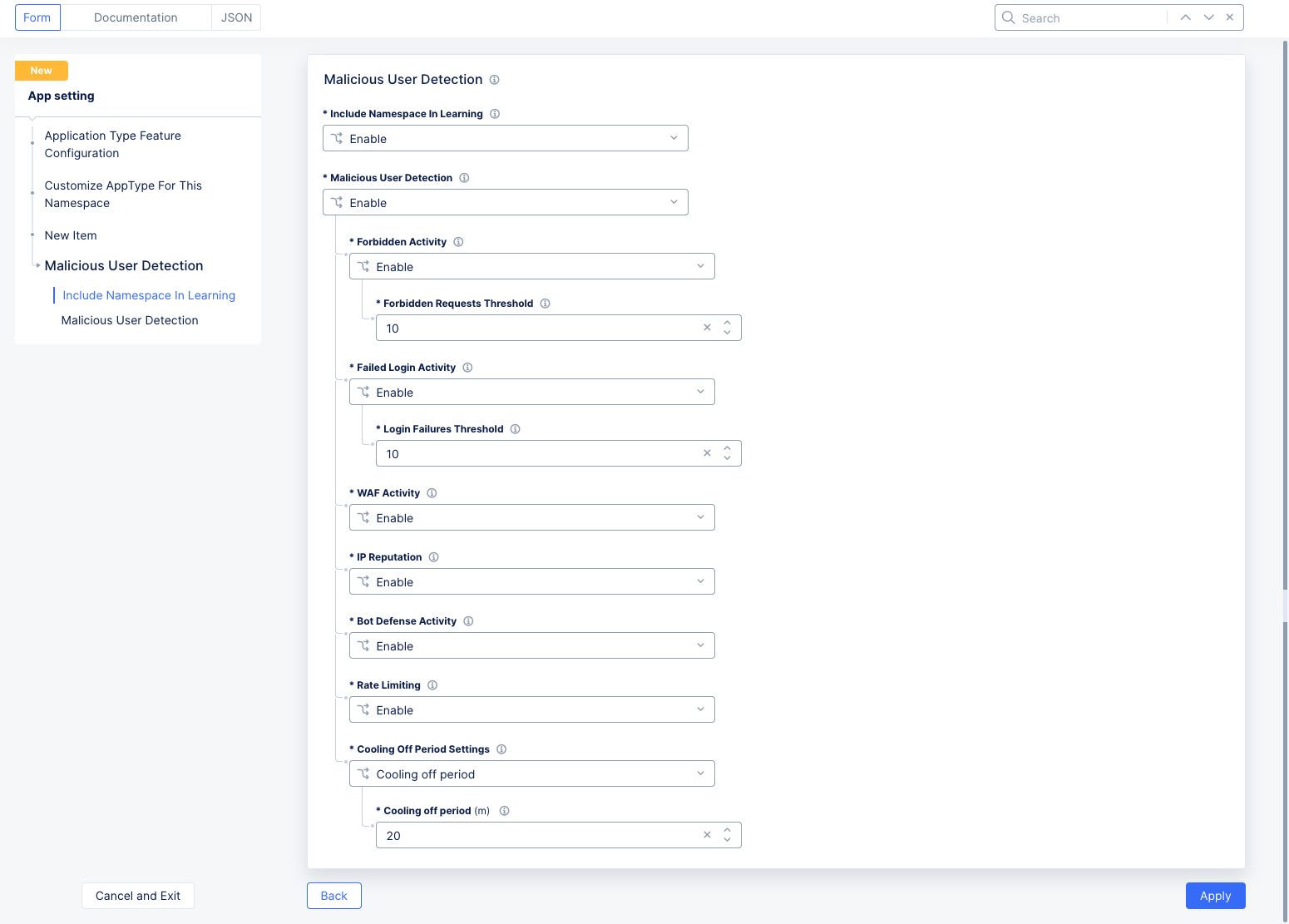

Figure: Malicious User Parameters

Include Namespace In Learning: The Distributed Cloud AI engine learns user behavior from traffic generated from all namespaces where virtual hosts and vK8s services are labeled with a valid apptype. Select Disable learning from this namespace to remove this capability for this namespace only.
Malicious User Detection: This field enables or disables malicious user detection. If you disable the feature, no traffic will be flagged as coming from a malicious user. The various methods for malicious user detection are shown below. You can adjust how malicious user detection works using the following fields:
- Forbidden Activity: A forbidden activity is any request that is denied through the service policy. This could be IP threat categories; forbidden domains and/or clients; HTTP methods, paths, query parameters, header; or more advanced matches. See Service Policy for more details. A user that exceeds the Forbidden Requests Threshold will be classified as malicious.
- Failed Login Activity Choice: This feature keeps track of the number of login attempts that failed (specifically 401 Unauthorized response codes). When the number of login failures from a user exceeds the limit entered in the Login Failures Threshold, the user will be classified as malicious. A successful login will not reset the login failure count. Only the cooling off period (discussed below) will reset the malicious user status.
- WAF Activity: WAF activity looks for known attack types and signatures, threat campaigns, malformed requests, and more. See Application Firewall for more details.
- IP Reputation: This uses a database of IP addresses with questionable reputations. IP addresses earn their reputations by performing exploits or attacks, or these addresses might represent proxy servers, scanners, or systems that have been infected. The database contains IP addresses that—
  - Are considered malicious Botnets,
  - Have launched Denial of Service (DoS) attacks,
  - Host illegal material or activity,
  - Are associated with phishing websites or web proxies,
  - And other malicious activities.
- Bot Defense Activity: When this feature is enabled and the Bot Defense product is successfully configured on the load balancer, bot defense events will be included in the malicious user activity risk score calculation.
- Rate Limiting: When this feature is enabled and the rate-limiting product is successfully configured on the load balancer, users who exceed the configured rate limits will be included in the malicious user activity risk score calculation.
- Cooling Off Period Setting: The Cooling off period (minutes) field specifies the number of minutes required to pass with no malicious activity in order to reduce a user's threat assessment. As each cooling off time period passes, a user's threat level will drop from high to medium, medium to low, and finally low to none. The cooling off period setting is used for all malicious user detection categories. The maximum Cooling off period is 120 minutes.

Step 5: Finish creating app setting object.

Select Apply and to save the settings.

Enable Malicious User Mitigation

Using the load balancer advanced security configuration, you can enable automatic mitigation of malicious users. The platform will apply the corresponding configured mitigation action for the specific threat levels.

Step 1: Start editing the load balancer configuration.

Switch to the Web App & API Protection workspace and change to the desired namespace.
Select Manage > Load Balancers > HTTP Load Balancers. A list of load balancers is presented.
Select ... > Manage Configuration for your load balancer and select Edit Configuration on the loaded form.

Step 2: Start configuring malicious user mitigation.

Go to the Common Security Controls section.
From the Malicious User Mitigation And Challenges drop-down menu, select Enable.
Select one of the options from the Malicious User Mitigation Settings drop-down menu. The Default option is selected. This default mitigation action is applied in the following manner:
- For activity with low threat level, a JavaScript challenge with default configuration will be issued.
- For activity with medium threat level, a Captcha challenge with default configuration will be issued.
- For activity with high threat level, the user will be temporarily blocked.
Select Custom and select a malicious user mitigation object from the Custom drop-down menu. You can also use the Add Item option to create a new object and in case of creating a new object, perform the following:
- Enter a name for this malicious user mitigation object. In the Rules section, select Add Item.
- Select a threat level for the Threat Level field and an associated mitigation action for the Action field. By default, Low and Javascript Challenge are populated.
- Select Apply to save the rule.
- Use the Add Item in the Rules section to add more rules.
When finished adding rules, select Add Malicious User Mitigation to add the malicious user mitigation object to the malicious user mitigation configuration.
Scroll down and select Save HTTP Load Balancer to save changes to the load balancer.

Note: The instructions shown in this guide apply default settings for challenges, such as JavaScript. Enable the Show Advanced Fields option to view more options, such as policy-based challenges to customize the configuration. By default, the identifier for a malicious user is the client's IP address. To change the user identifier, go to the security configuration of load balancer, enable advanced fields, and select User Identification Policy for the User Identifier field, and select an existing identifier object or create new one using the create option in the drop-down list. For instructions, see Configure User Identifier. You can specify a cookie name, header name, query parameter, or ASN for user identification.

Monitor Malicious User Activity

You can verify and monitor malicious user activities in the Web App & API Protection (WAAP) workspace. For more information, see Monitor Web App & API Protection.
